You can now upload and balloon multiple PDF documents per part. Select up to 10 PDFs to upload when starting a new part. If you’d like to add a drawing to an existing part, select the part from your Parts database, then click “Attach Document” in the part panel on the right.
You can now control whether grids are applied to each drawing or document PDF that you upload. On the Grid Zones settings page (Step 4), select the document from the “Drawing” dropdown in the top toolbar, and set the slider to indicate whether a grid is applied. You can do this for each document you upload.

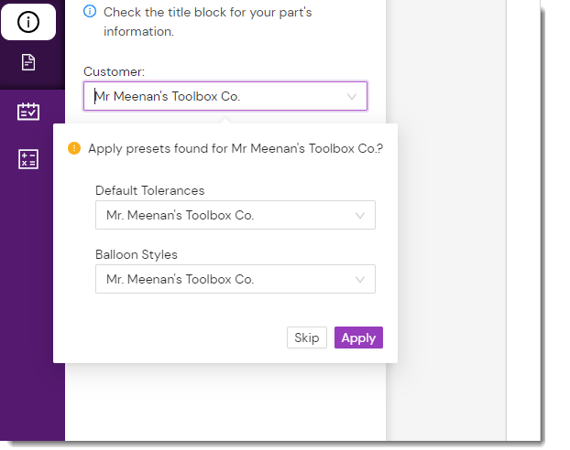

You can now apply tolerance and balloon presets to a part when you select a predefined customer.
We now have improved support for large notes and notes containing numbers and symbols. When capturing large notes, the “Full Specifications” window can expand to accommodate a note of any size.
